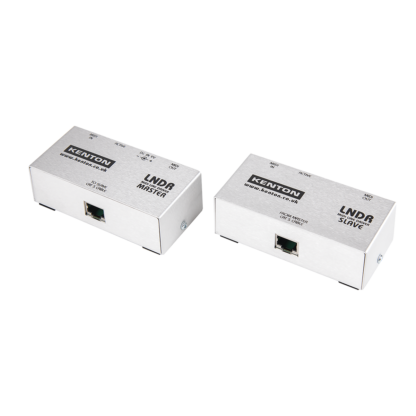

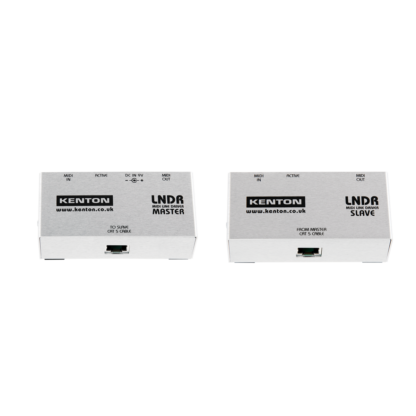

LNDR MIDI Line Driver
The MIDI Line Driver – extend MIDI up to 1000 metres with CAT5e.
See also LNDX MIDI Line Driver Pro.
£106.60 ex VAT
£127.92 inc VAT
Description
The LNDR MIDI Line Driver extends MIDI beyond its 15 metre (50 feet) specification using CAT5e cables.
Extending MIDI to 1000m
The LNDR MIDI Line Driver’s combination of balanced line drivers and twisted pair cable (CAT5e) gives a high degree of immunity to noise, which results in a very high degree of signal integrity – in plain language, a very reliable MIDI link over much greater distances than can be achieved with ordinary MIDI connections.
CAT5e cable is recommended: CAT5 cable will limit the transmission length to 100m. For distances over 100 metres, 24 AWG solid copper core CAT5e cable should be used.
CAT5e cable is not included (we don’t know what length you need!) Please see below for cables.
The CAT5e cable from an LNDR main unit should only be connected to an LNDR secondary unit, not to another main unit, and NEVER to any other device, even if it has a similar connector. (e.g. Ethernet).
Frequently Asked Questions
I already have some MIDI Line Driver Pros – can I mix-and-match MIDI Line Driver Pros and MIDI Line Drivers?
The MIDI Line Driver and MIDI Line Driver Pro share the same communications protocol, so you can use a Line Driver at one end and a Line Driver Pro at the other. You can use plain RJ45 connectors rather than etherCON with the MIDI Line Driver Pro.
Specification
| Power Supply: | Power 9V DC via 2.1mm centre-positive jack socket (Power Supply included) |
| Current Draw: | 85mA |

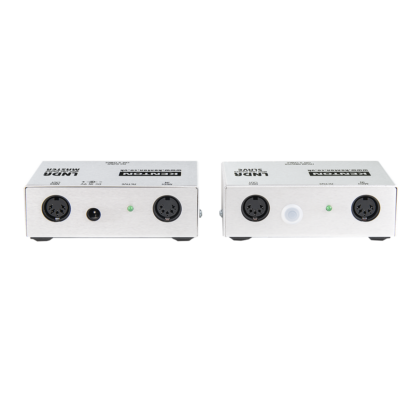

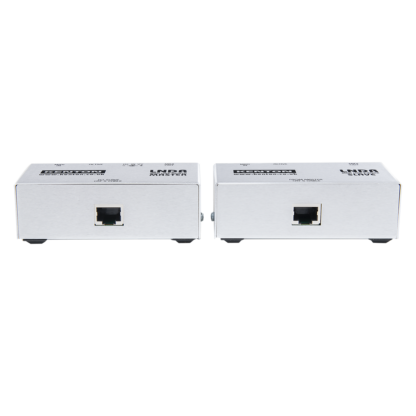

| Connectors (each unit): | RJ45: RS485 full duplex over CAT5. Note the LNDR requires exclusive use of the CAT5 cable. 2 x 5 pin DIN: MIDI IN, MIDI OUT |
| Range: | 1000 metres between main & secondary units over CAT5e cable |

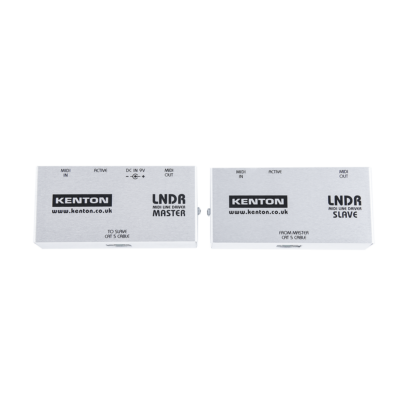

| LEDs: | LED to indicate Power and MIDI activity |

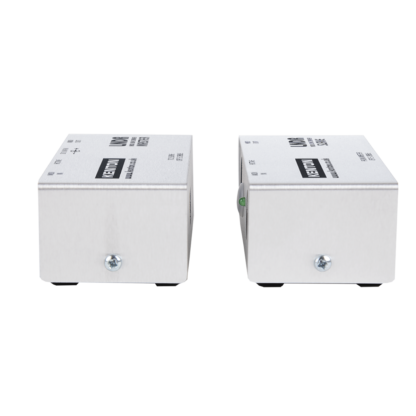

| Dimensions (each unit): | 100 x 46 x 32mm |
| Weight (each unit): | 110g (excluding power supply) |
| Accessories included: | User Manual 9V regulated Multi-Region Power Supply (suitable for use in the UK, EU, US/Canada and AUS/NZ.) |
